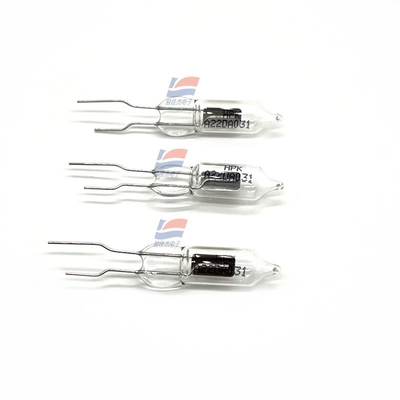

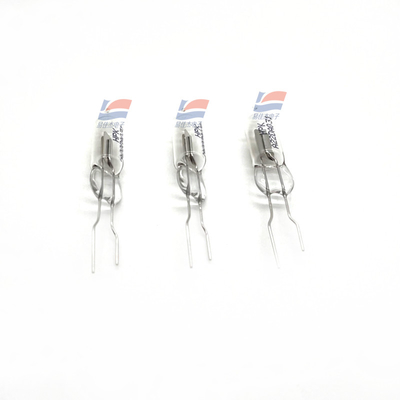

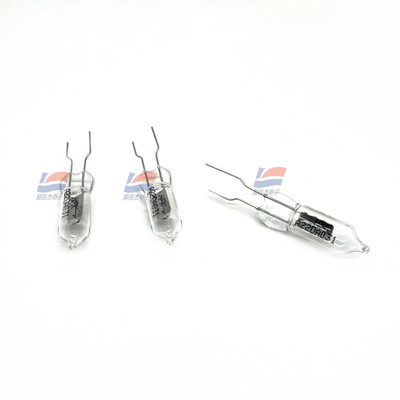

YJJ R9454 Side-Window Type UV Light From Side Flame Detector of Bulb

Product Description:

YJJ R9454 Side-Window Type UV Light From Side Flame Detector of Bulb

Features:

R9454 is a side-window type (UV light enters from the side of the bulb), and its shape is similar to that of R2868 UVtron. It features high sensitivity and a wide field of view (directionality).

Detailed parameters

Spectral sensitivity characteristics (short) 185 nm

Spectral sensitivity characteristics (long) 260 nm

Electrode material Ni

Weight 1.5 g

[Maximum Rating] Power supply voltage (DC) 500 V

[Maximum Rating] Average discharge current 1 mA

[Maximum Rating] Peak current 30 mA

[Maximum Rating] Operating temperature range -40 to +125 °C

Discharge startup voltage (DC) 360 V

Discharge holding voltage (DC) 300 V

Typical sensitivity value 4000 min-1

Maximum background value 10 min-1

[Recommended Operating Parameters] Power supply voltage (DC) 400 ± 25 V

[Recommended Operating Parameters] Average discharge current 0.3 mA

[Recommended Operating Parameters] Shortest quenching time 2 ms
