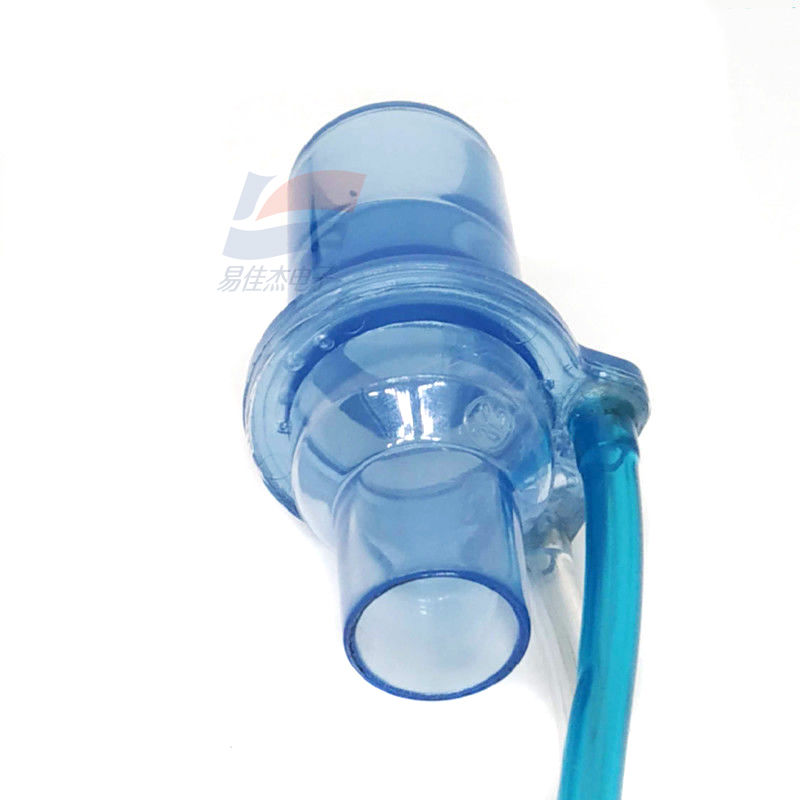

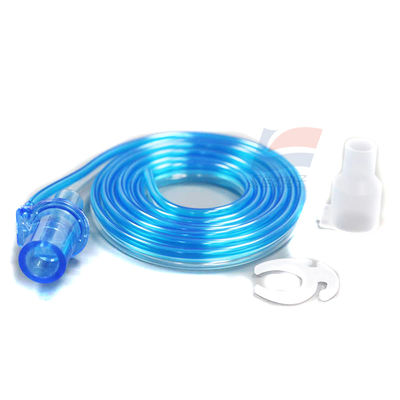

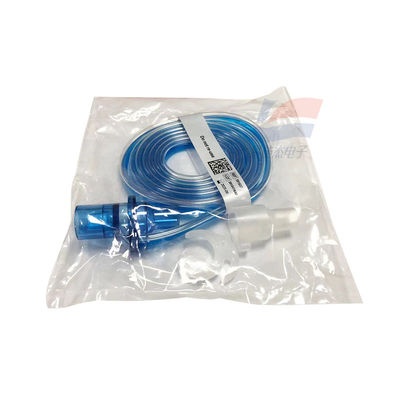

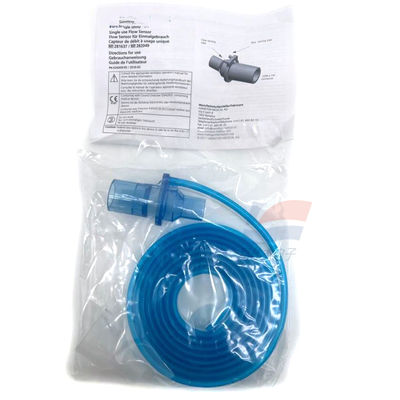

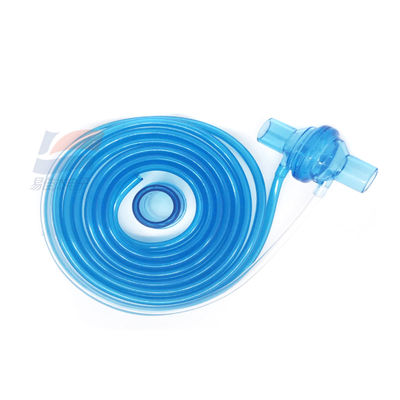

281637 282049 282051 Flow sensor For Medical ventilators

281637 282049 282051 Flow sensor For Medical ventilators
281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators

বড় ইমেজ :  281637 282049 282051 Flow sensor For Medical ventilators

পণ্যের বিবরণ:
উৎপত্তি স্থল: মার্কিন যুক্তরাষ্ট্র
মডেল নম্বার: 281637 282049 282051
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1 পিসি
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: স্ট্যান্ডার্ড প্যাকেজিং
ডেলিভারি সময়: 5-8 কাজের দিন
পরিশোধের শর্ত: এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
যোগানের ক্ষমতা: 5000pcs

281637 282049 282051 Flow sensor For Medical ventilators

বিবরণ
প্রবাহ পরিসীমা: 0 থেকে 180 এল/মিনিট (স্বল্প মেয়াদ 260 এল/মিনিট) মৃত স্থান: <11 এমএল (কার্যকরী)
প্রতিরোধ: <0.027 সেমিএইচ 2 ও/(এল/মিনিট) সম্পূর্ণ প্রবাহের পরিসীমা (-180 এল/মিনিট থেকে 180 এল/মিনিট) তাপমাত্রা: অপারেটিং: -20 ° C থেকে 50 ° C (-4 ° F থেকে 122 ° F)
বিশেষভাবে তুলে ধরা:

medical ventilator flow sensor

,

air flow sensor for ventilators

,

medical air flow sensor with warranty



                                           281637 282049 282051 Flow sensor For Medical ventilators





Product Overview:

The 281637 is a compact, industrial-grade gas sensor designed for reliable detection of specific target gases (confirm target gas with manufacturer, e.g., carbon monoxide, methane, volatile organic compounds, or oxygen). It adopts semiconductor (metal oxide) or electrochemical sensing technology (depending on target gas) to deliver fast response, low power consumption, and stable long-term performance. Typical applications include industrial safety monitoring (e.g., factory leak detection), indoor air quality (IAQ) management, smart home safety systems, and portable gas detectors.



No.

Component/Parameter Category

Description

Specification/Details

Material

Remarks

1 Connector Ventilator side OD15 PSU -
2 Tubing - - PVC -
3 Connectors for Tubing Differential pressure measurement - PSU -
4 Direction Index - - - -
5 Individual Serial Number - - - -
6 Connector Patient side OD22/ID15 PSU -
7 Flap - - PET -
- Technical Performance Flow range 0 to 180 l/min (short term: 260 l/min) - -
- Technical Performance Dead space < 11 ml (functional) - -
- Technical Performance Resistance < 0.027 cmH₂O/(l/min) over the complete flow range (-180 l/min to 180 l/min) - -
- Technical Performance Weight - Approx. 14 g (without tubes)
- 68 g (with 188 cm tubes)
- 89 g (with 260 cm tubes)
- 110 g (with 330 cm tubes)
- -
- Material Compliance Material standards 1. Complies with ISO 10993-1:2009 (biocompatibility)
2. Complies with Directive 2011/65/EU (RoHS)
3. No natural rubber latex, DEHP, or BPA
- Ensures safety for medical use
- Accuracy (Calibrated Flow Sensor) Volume-related parameters (HAMILTON ventilators) - HAMILTON-C1/T1/MR1/C2/C3/C6: ± 10% or ± 10 ml (whichever is greater)
- HAMILTON-G5/S1: ± 15% or ± 20 ml (whichever is greater)




281637 282049 282051 Flow sensor For Medical ventilators 0
