Product Description:

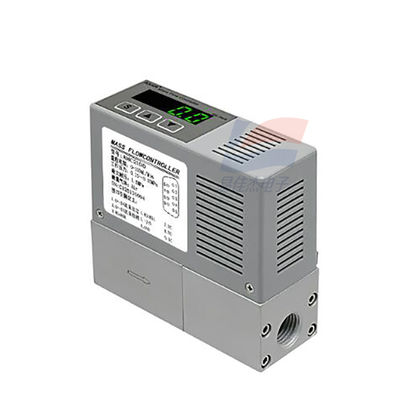

YJJ AMC2100 Digital Display MFC Gas Mass Flow Controller Oxygen Air Nitrogen Flow Meter Sensor
Features:
AMC2100 Gas Mass Flow Controller
Accurate, stable, resistant to high and low temperatures, with good linearity and fast response time
The AMC2100 gas mass flow controller is a device for precise measurement and control of gas mass flow. The sensor adopts the independently developed MEMS mass flow chip, featuring accuracy, stability, resistance to high and low temperatures, good linearity, and fast response time.
Before leaving the factory, the range, accuracy, repeatability, response time, etc. of the AMC2100 have all undergone strict testing and calibration.
AMC2100 is a mass flow controller designed for monitoring and controlling dry, clean, non-corrosive gases (excluding flammable and explosive gases). It can be widely applied in quality flow control monitoring in fields such as university research, fire protection, environmental monitoring, tobacco, smart agriculture, food, and medicine.
Gas mass flow controller
Power supply: 24V DC
Measurement range: 100, 300,
500 SCCM/min, 1.5 SLM/min
Accuracy: ±3% F.S
Repeatability: 0.5% F.S.
Response time: ≤ 2s
Standard calibration gas: Air (standard condition)
Output mode: RS485 / analog voltage
Size: 80*30*73mm
Specifications:
| Power supply |
24V DC |
| Temperature |
-40℃ ~ +80℃ |
| Response time |
±0.1℃, ±0.1%RH |
| Output mode |
RS485 / analog voltage |
