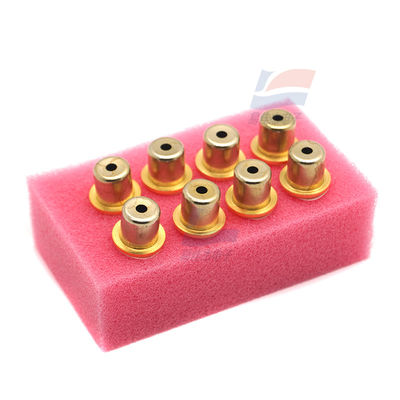

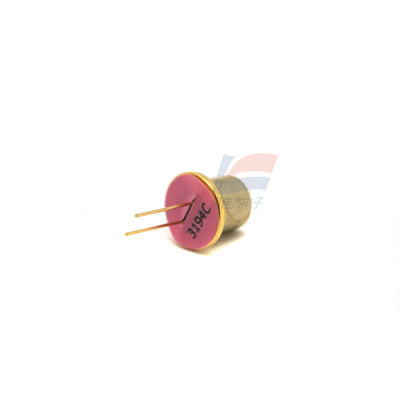

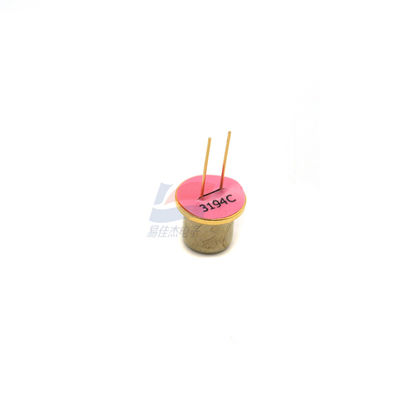

YJJ CAT16 CAT-16 Catalytic Combustion Sensor Is Used Detect Concentration Of Combustible Gases

Product Description:

YJJ CAT16 CAT-16 Catalytic Combustion Sensor Is Used Detect Concentration Of Combustible Gases

Features:

Core parameters
‌Detection principle‌: Utilizes catalytic combustion sensors, capable of detecting combustible gases such as methane, propane, and hydrogen.
Range: 0 - 100% LEL (Lower Explosive Limit), response time less than 15 seconds.
Working environment: Temperature -40℃ to 50℃, humidity 0-95% RH (no condensation), supports explosion-proof structure.

Output mode: Analog signal output, supporting 4-20mA current output.
Main application
‌Industrial/Commercial Environment Monitoring‌: Suitable for monitoring of combustible gases such as natural gas and liquefied gas, including in places like chemical plants and gas stations. ‌
Safety protection: It can be connected to an audible and visual alarm system. When the concentration of combustible gas exceeds the limit, the alarm will be triggered.
Home application scenario: Some models are suitable for home use, such as gas leakage detection in environments like kitchens.
This sensor needs to be installed with the help of a dedicated PCB socket to prevent damage to the equipment during soldering

Features of CAT-16 Product
High-precision catalytic combustion sensor
The shell design features small holes to restrict the diffusion of gases.
Excellent resistance to H2S poisoning
Excellent anti-silicon performance
Explosion-proof certification of sensors
Performance characterization
Gas type Flammable gas Product Description
CAT-16

Sensor Principle - Catalytic Combustion
Range 0-100% LEL

Maximum load None Sensitivity
12 mV per % methane
Working voltage
2.7 ± 0.2 VDC
Response time (T90) < 10 seconds (methane)
Linearity ± 10% LEL up to 100%LEL

Antitoxic
Anti-hydrogen sulfide poisoning
Excellent silicon resistance performance
Long-term span drift: < 3% LEL per year
Long-term zero-point drift: < 3% LEL per year

Working conditions
Working temperature

-40 ℃ to 50 ℃

Work humidity

0 to 90% RH (no condensation)
Storage time
6 months (in a dedicated packaging box)
Storage temperature
0 ℃ to 20 ℃

Storage humidity
45 - 75% RH in clean air
Service life
12 years in the air
