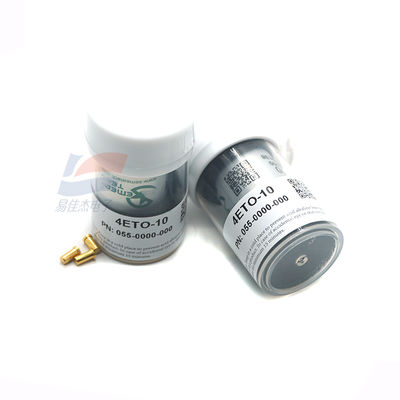

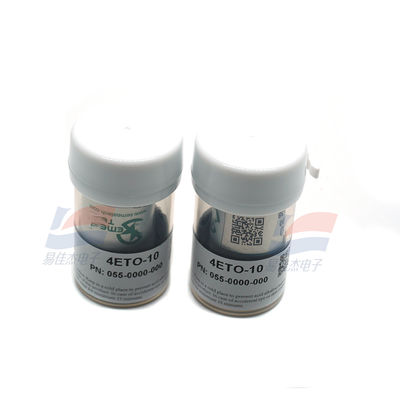

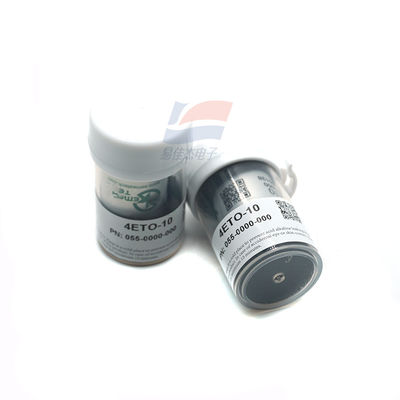

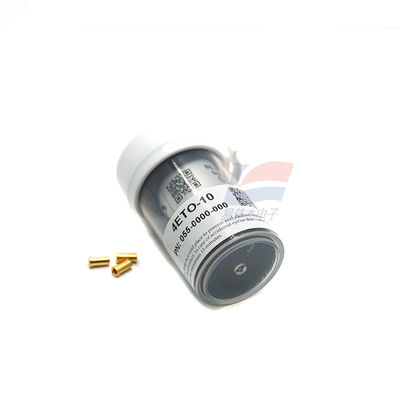

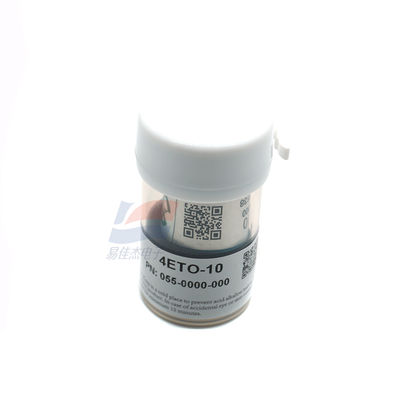

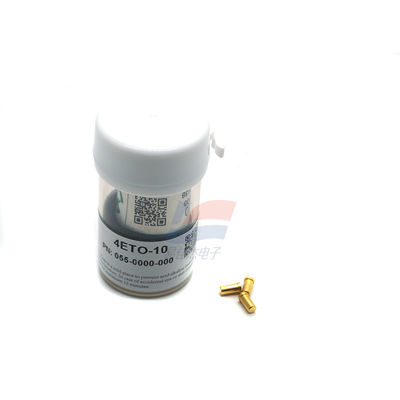

YJJ 4ETO-10 0550-0000-000 0-10 ppm Electrochemical Gas Sensor Is Used For Environmental Monitoring

Product Description:

YJJ 4ETO-10 0-10 ppm Electrochemical Gas Sensor Is Used For Environmental Monitoring

Features:

Main parameters of the 4ETO-10 gas sensor are as follows:

Measurement range

0 to 10 parts per million of ethylene oxide (C2H4O).

Sensitivity

1.9 ± 0.8 μA/ppm (baseline range: -0.2 to 2.5 μA), or 0.760 ± 0.32 μA/ppm.

Resolution

0.1 parts per million.

Response time (T₉₀)

≤ 120 seconds.

Working temperature

-20℃ to 50℃.

Humidity range

15% - 90% relative humidity (no condensation).

Pressure range

90 to 110 kPa.

Long-term stability

The signal value changes by less than 2% each month.

Service life

In the air environment, it lasts for approximately 3 years.

4ETO-10 gas sensor is mainly used for detecting the concentration of ethylene oxide (C2H4O), and is applicable in industrial environments, petrochemical industries, pharmaceutical production, and other scenarios.
